You should know some common sense about the oil casing

Oil casings are not very closely associated with our daily life, and the average person may not know much about it. But as a pipe dealer or a pipe industry, you should understand the common sense of petroleum casing.

The petroleum casing pipe is a big caliber pipe material, which plays a role in fixing the oil and gas well wall or well bore. The casing is inserted into the well hole and is fixed with cement to prevent collapse of the borehole and to ensure the circulation of drilling mud so as to facilitate drilling and mining.

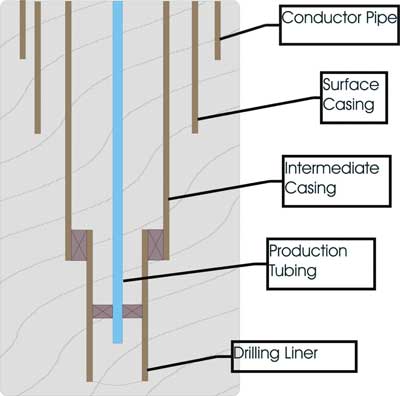

Types and applications of petroleum casing

When oil casing is manufactured, the outer diameter is usually 114.3 millimeters to 508 millimeters. Different types of casing that will be used in oil production.

• Surface oil casing protects drilling so as to avoid pollution by shallow water and shallow gas reservoir, what’s more, it also supports wellhead equipment and maintains the weight of other layers of the casing.
• The technical oil casing separates the pressure at different levels so that the drilling fluid is in normal circulation and protects the production casing, which is favorable for installing an anti blasting device, a leakproof device and a tail pipe in the drilling.
• The oil casing is used to export oil and gas from the storage beneath the ground surface, which protect drilling to separate drilling fluid.

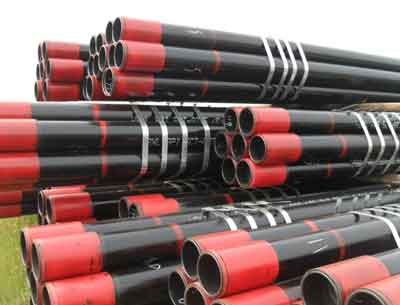

Important position of petroleum pipe

The petroleum industry is an industry that uses petroleum pipes extensively, and petroleum pipes play a very important role in the petroleum industry.

• The dosage and expenditure of oil pipe is great, so the potential for saving costs and reducing costs is enormous. The consumption of an oil well pipe can be calculated according to the annual drilling gauge. According to China's situation, in general, every drilling 1m requires an oil well pipe 62kg, which includes casing 48kg, tubing 10kg., drill pipe 3kg, drill collar 0.5kg.
• The mechanical and environmental behaviors of petroleum pipes play an important role in adopting advanced technology in petroleum industry and increasing production.
• If the oil pipe fails, it will cause great loss, so the safety of the petroleum pipe is great importance to the oil industry.

Anti-corrosion measures of petroleum casing pipe

1. Good water quality standards, strict water quality testing and management. Clean the sewage, divide the injection, strengthen the cleaning of the main water pipeline, and achieve the water level in the station and the bottom hole, reduce the corrosion source.
2. For the newly produced injection wells, it’s mainly to add annular protecting fluid based on sterilization. This measure should form a system to ensure regular addition.
3. In view of mechanical abrasion, which accelerates the oil casing corrosion, suggest adding a rubber ring on the oil pipe coupling or adding a stabilizer in the part of serious deviation. It can avoid tubing scraping sleeve during operation.
4. In view of the serious bacterial corrosion, it can be regularly injected into the ring of 100 degrees Celsius high temperature water or water vapor to kill the SRB. This is based on the slow growth and the killing conditions of SRB at high temperatures.
5. Before corrosion within the casing has not been effectively controlled, cathodic protection and coated bushings are not recommended for promotion.
